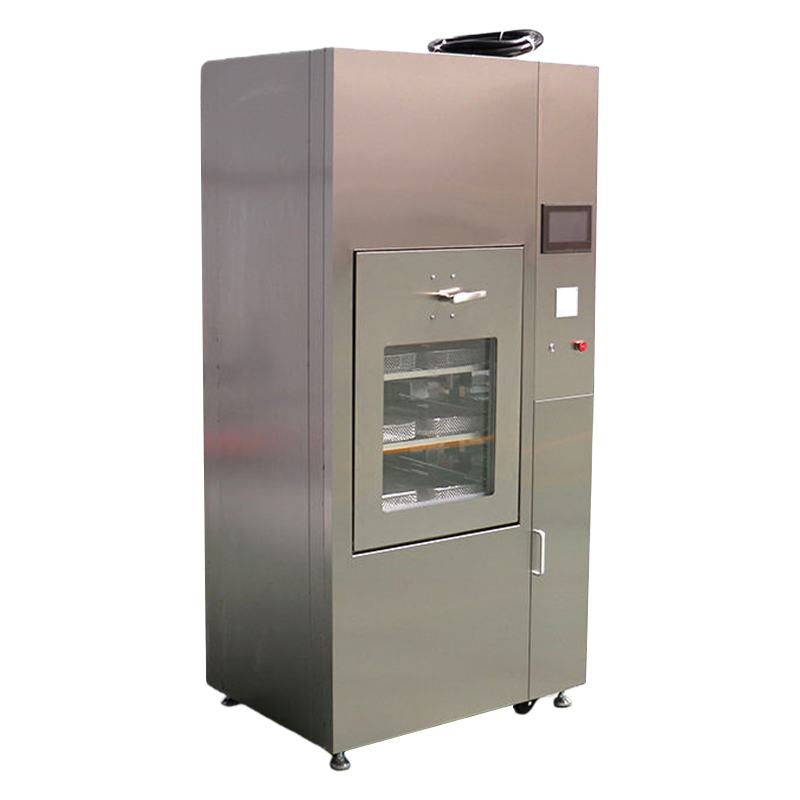

X360 Lab Automatic Glassware Washer Washing Machine Dental Disinfection From 65l 160l Washer Disinfector
Product name：Automatic Washer-disinfector X360
Mainly suitable for hospital endoscope, scalpel, hemostatic forceps, endoscopic biopsy forceps, tweezers, injection needles, various size syringes, test tubes, glass flakes, dressing changing bowls, various plates, buckets, pressure gauges, and other radioactive, polluting, mass, etc. High cleanliness, fast, efficient, safe and economical automatic cleaning, disinfection and drying.
Performance characteristics：
① Pre-cleaning function: automatic irrigation function, medium heat disinfection function, chemical disinfection function, rust removal function, rinsing function, drying function, automatic addition of cleaning agent and quick drying oil agent and self-setting of dosage.
② Simple operation: the PLC/ color touch screen control system is adopted, the man-machine interface is simple to operate, and the physical parameters can be set directly through the touch screen to realize the customer's personalized demand.
③ Printing system: high-performance heat sensitive printing technology, the cleaning and disinfection process of time, temperature and other parameters can be printed out in real time. The printing record can be saved for a long time.
④ Fast time: enzyme cleaning takes only 25 minutes to complete the cleaning operation.
⑤ Open door mode: double door design, distinguish clean area from unclean area.
⑥ Circulating pump: select original imported circulating pump.
⑦ Excellent loading capacity: can clean 8 standard DIN baskets at a time.
⑧ Fault self-examination and diagnosis function: system equipment safety self-test fault diagnosis function to ensure the safety of equipment operation.
⑨ Bulkhead: stainless steel 304) cabin.
Main technical parameters：
lItem：SQ-X360
lCleaning capacity：357L
lSpray electric power：1.6kVA
lWind voltage power：2.2kVA
lWater heating power：20kVA
lDrying and heating electric power：6kVA
Power：31KVA
lDrying temperature：90℃
lDisinfection temperature：93℃
lCleaning rack layer number：4
lNumber of baskets：8
lClean the car in and out：Manual control in and out
lWorking noise：≤75dB
lWater pressure 0.20Mpa-0.50Mpa
lSupply voltage ：3N～380V，50Hz
lOutline dimension：H 2060 L 950mm W 825mm
Cleaning tank dimensions：627mm×595mm×980mm
Structure composition
It consists of cleaning sterilizer, frame, casing, sprinkler system, cleaning car, caster, heating system, drying system, solenoid valve, circulating pump, peristaltic pump, fan, control system, touch screen, printer and pipeline.
Consumable material addition
The equipment used in this equipment can only use low foam products, the use of non low bubble products may lead to leakage, rinse and other results; for the ratio of consumables and the cleaning temperature, please contact the supplier.
1.Supplies are placed in the right door of the equipment, with a capacity of about 1.6 liters. Add the consumables directly. In the enzymatic cleaning cycle, the cleaning liquid is automatically added to the water.
Cleaning process (six modules)
① Enzyme rapid cleaning
Process：Cleaning、First rinse、Second rinse
Applicable instrument：Device cleaning for high temperature resistance and no need for drying
Points for attention: providing softened water, pure water or distilled water can improve the quality of cleaning.
② Standard cleaning
Process：Cleaning、First rinse、Second rinse、Hot rinsing、Dry
Applicable instruments: for metal instruments and non-heat-resistant disinfectant cleaning instruments
Note: provide softened water, pure water or distilled water can improve the quality of cleaning. Adding Lubricant can avoid Watermark in drying process。
③ Thermal disinfection cleaning
Process: Pre-cleaning、Cleaning、First rinse、Second rinse、Hot rinsing、Dry
Applicable instruments: used for metal instruments and instruments requiring high temperature disinfection and cleaning
Note: provide softened water, pure water or distilled water can improve the quality of cleaning. Adding Lubricant can avoid Watermark in drying process。
④ Chemical cleaning
Process: Pre-cleaning、Cleaning、First rinse、Disinfect、Second rinse、Hot rinsing、Dry
Applicable equipment: used for cleaning high temperature equipment and rubber, plastic equipment.
Note: provide softened water, pure water or distilled water can improve the quality of cleaning. Adding Lubricant can avoid Watermark in drying process.
⑤ Fast heat disinfection and cleaning
Process：Cleaning、Hot rinsing、First rinse、Second rinse、Drying
Applicable instruments: used for metal instruments and instruments requiring high temperature disinfection and cleaning
Note: provide softened water, pure water or distilled water can improve the quality of cleaning. The addition of lubricant can prevent the watermark from being produced in the drying process.
⑥ Dry
Process : drying（90℃、20min）
Applicable instruments: for metal instruments and equipment requiring high temperature drying
Attention: change medicine bowl, waist plate and other containers should be put upside down to ensure the quality of drying.

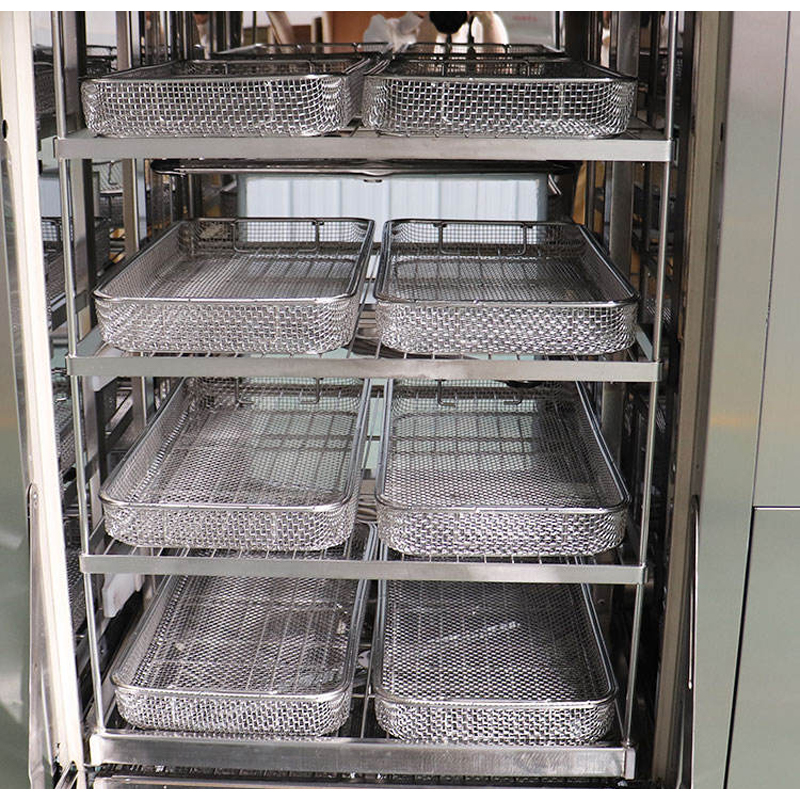

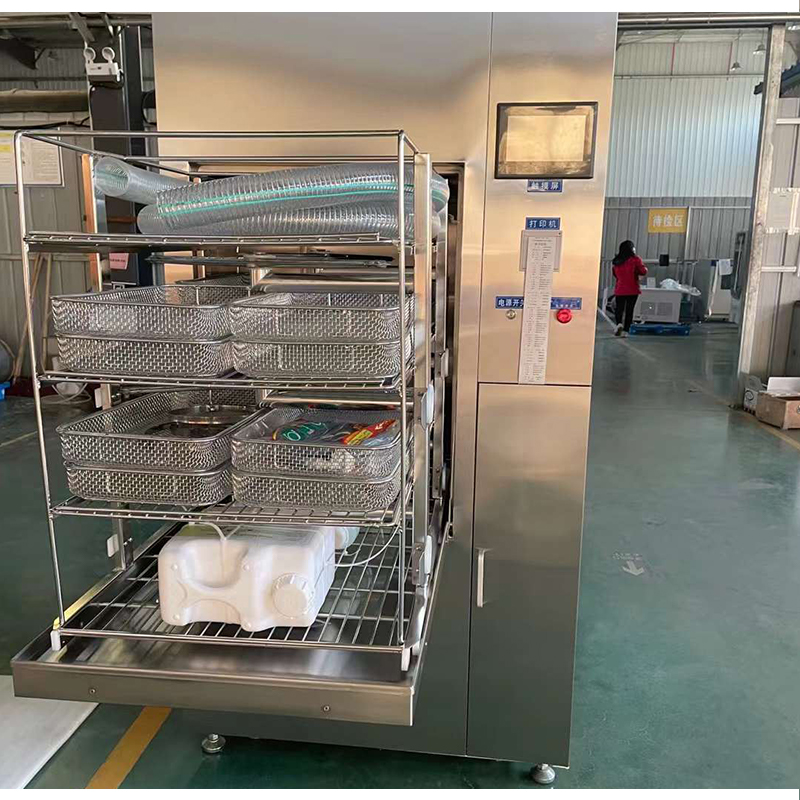

Device loading
- There is a certain gap between the apparatus and the other, and it is arranged evenly, and the connecting parts of the apparatus are removed as far as possible, so that all the external surfaces of the apparatus leak out and are not blocked, so that the instrument does not protrude out of the bottom of the instrument basket so as not to obstruct the movement of the nozzle. Rotate the spray arm with your hand when necessary to check if it works well.
- For some larger instruments such as: dressing bowl, waist plate, square tray, etc., can be removed from the bracket, replaced with a plug card cleaning.
3.After the equipment is placed, push the instrument car into the machine. After checking, close the door.
