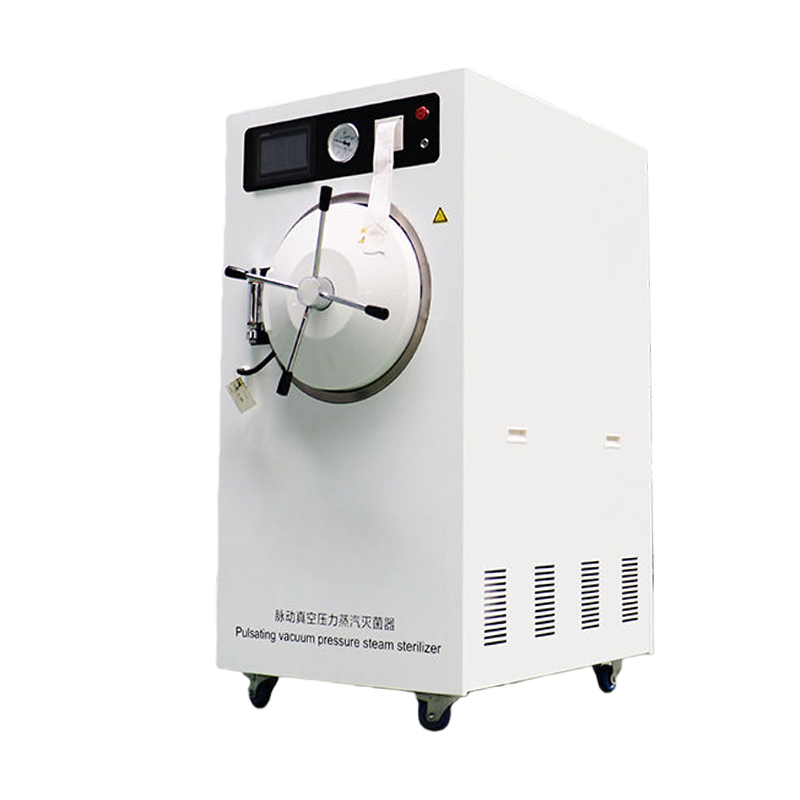

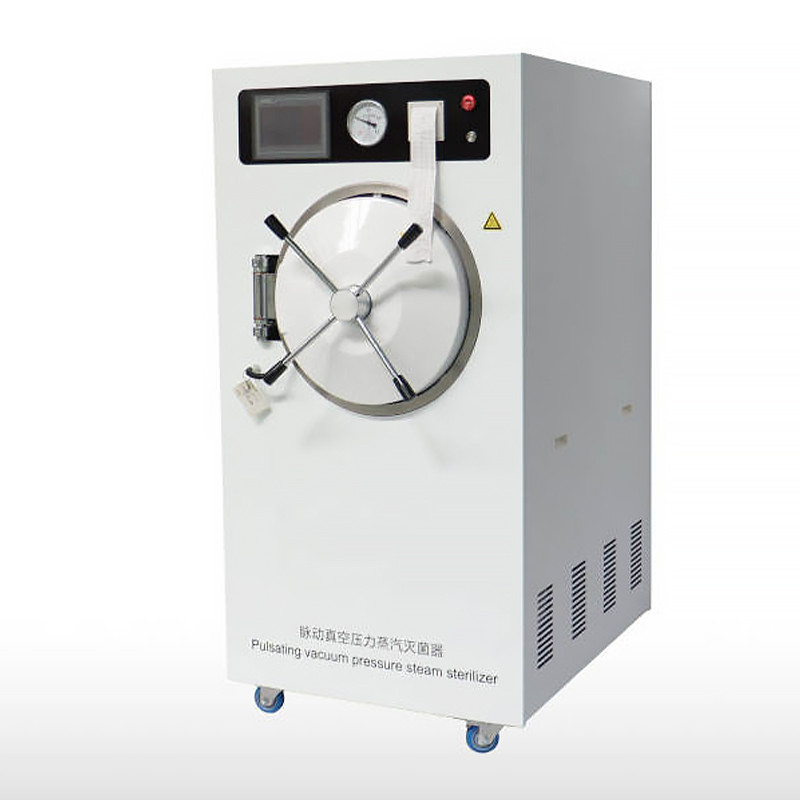

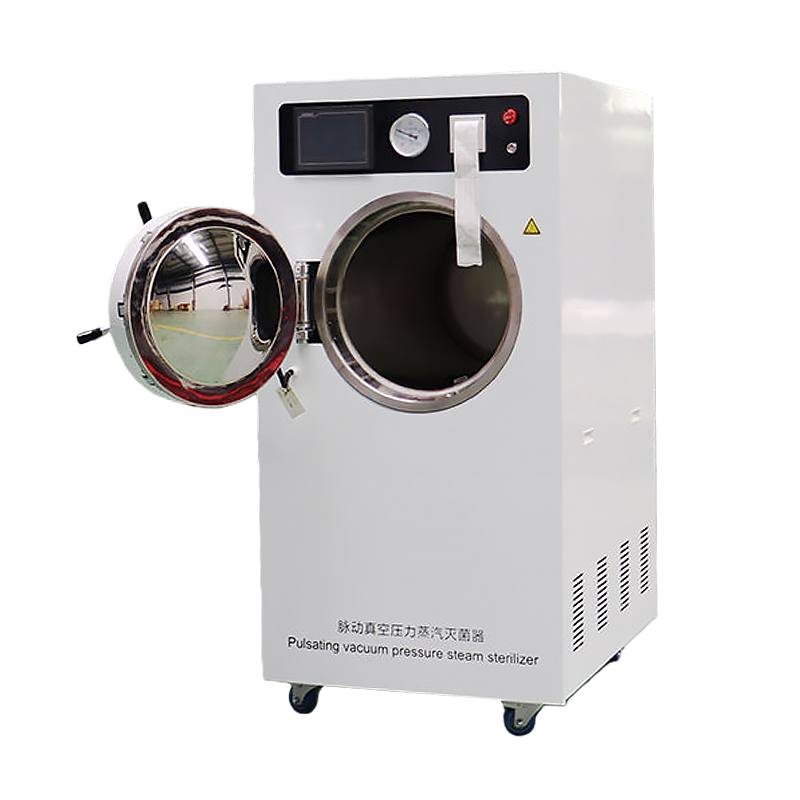

M200 High Quality Autoclave Table Top High Pressure Steam Sterilizer Low Price Manufacturer Direct
【Specifications】
【Product name】 Pulsating vacuum pressure steam sterilizer
【Model】M200
【Product form】 Vertical
【Heating method】 Electric heating
【Power】 18.0KW
【Power】AC380V, 50Hz
【Dimensions】(L × W × H): 1355x802x1550mm
【Liner size】 (Diameter × Depth): 500 × 1040mm
【Capacity】 200L
【Weight】 360kg
【Temperature display】 LCD screen
【Design Pressure】 0.29MPa
【Rated working pressure】 0.21Mpa;
【Design temperature】 150 ℃;
【Working temperature】 121 ℃ / 134 ℃;
【Number of pulses】 0 ～ 99 times;
【Sterilization time】 0 ～ 9999 seconds;
【Drying time】 0 ～ 9999 seconds;
【Safety valve in sterilization chamber】 Open ≧ 0.25Mpa, close ≦ 0.24Mpa;
【Pulsation amplitude】-80.0Kpa～150Kpa
【Water source of evaporator】 softened or purified water, water temperature ≤45 ℃, water pressure 0 ～ 0.05 Mpa;
【Water source of vacuum pump】Tap water (hardness should not be too high), water pressure 0.10Mpa ~ 0.20Mpa;
【Air Discharge】 ＞ 99 ﹪ (Pulsation times more than 3 times)
【Vacuum Drying】 Avoid humidifying the disinfection package after disinfection
【Pulse exhaust】 Positive pressure dynamic pulse exhaust to completely eliminate cold air in the sterilization room and ensure steam saturation.
【Working procedures】 Water injection, preheating, pulse vacuum, sterilization, drying and dormancy are automatically completed.
【Microcomputer control technology】 The sterilizer uses microprocessor intelligent control, man-machine interface, easy to operate, safe and reliable.
【Locking device】During the operation of the equipment, the door is locked.
【Pulsation mode】Microcomputer control automatically selects the number of pulsations according to the site conditions to ensure the coordination of temperature and pressure.
【Vacuum mode】Three pre-vacuums to ensure faster heating and more complete sterilization.
【Overpressure protection program】 When the pressure in the sterilization chamber reaches 220 ± 5kPakPa, there is a prompt sound and the pressure can be automatically released.
【Air Leakage】When the sterilizer is tested in various stages, the pressure increase rate should not be greater than 0.13kPa / min.
【Dynamic pressure in sterilization chamber】The pressure change in any 2s interval during the sterilizer cycle should not exceed 1000kPa / min.
【Vacuum pump】 Adopt water ring vacuum pump;
【Pressure Sensor】 The built-in pressure sensor automatically detects the pressure in the cavity.
【Temperature Sensor】The built-in temperature sensor automatically detects the temperature in the cavity, with an accurate range of ± 3 ℃.
【Sterilization Mode】 Sterilization mode for solid equipment, dressing packaging, rubber products, BD test, high pressure, etc.
【Automatic drying】 Powerful vacuum drying, suitable for different items drying needs; the remaining humidity of the equipment is <0.2%.
【Seal structure】The sealing ring is made of silicone, and the designed service life is 2 years (1200 times) without aging and deformation.
【Footwheel】 Yes
【Alarm system】 High and low temperature alarm system
