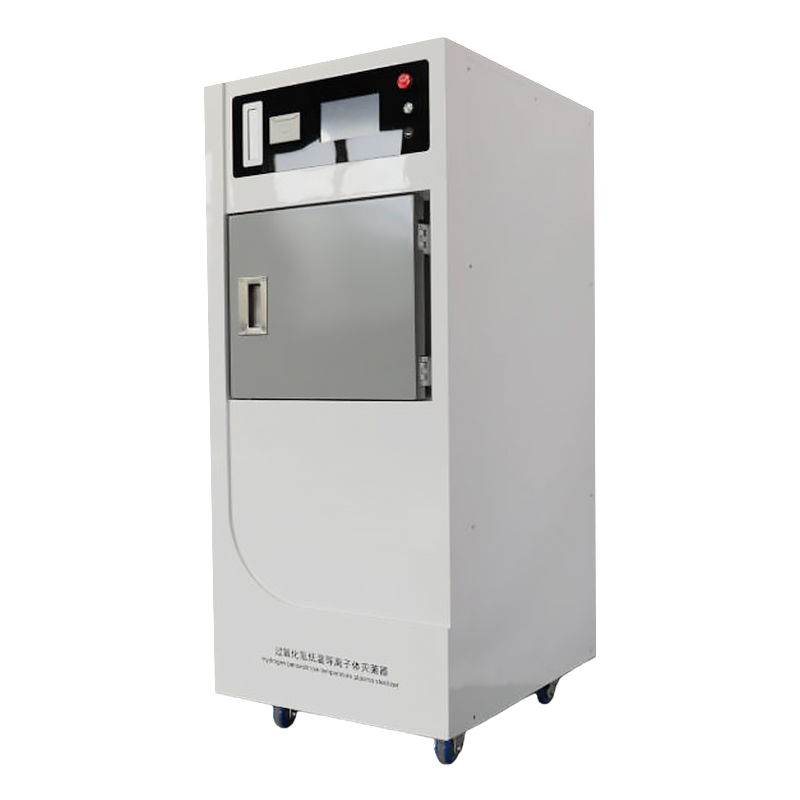

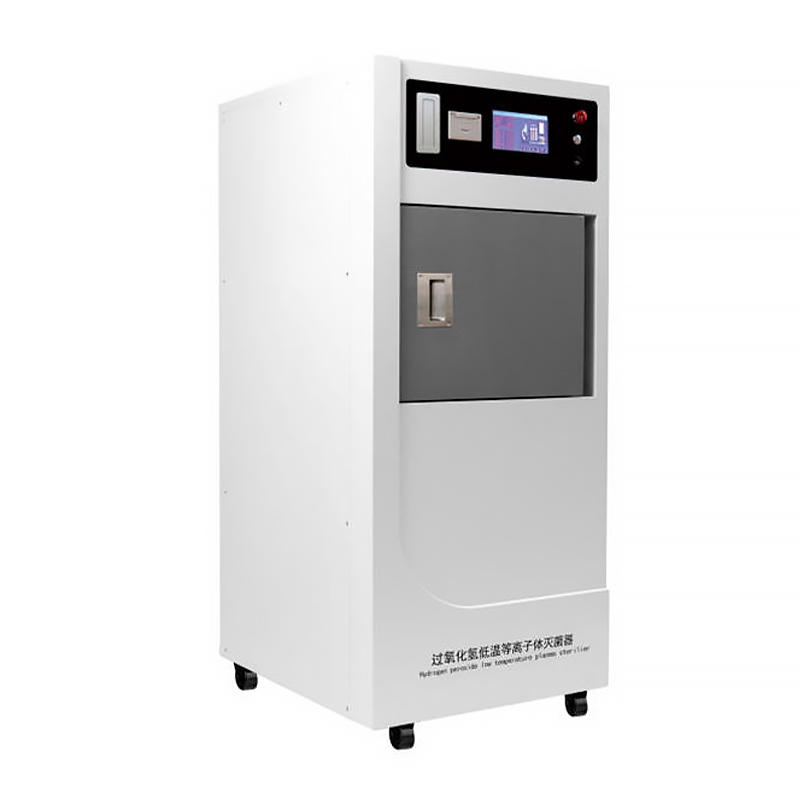

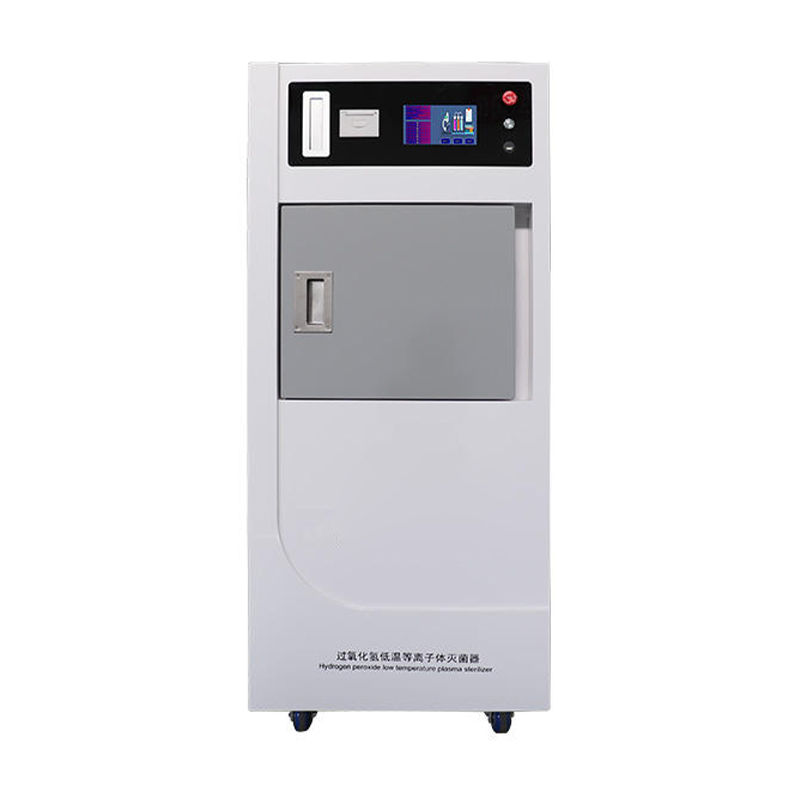

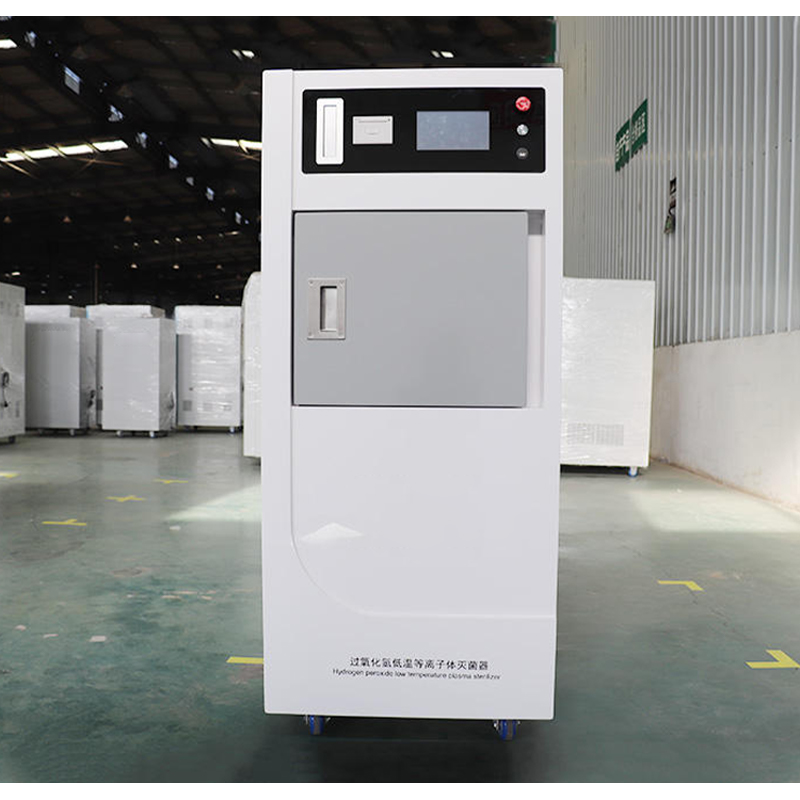

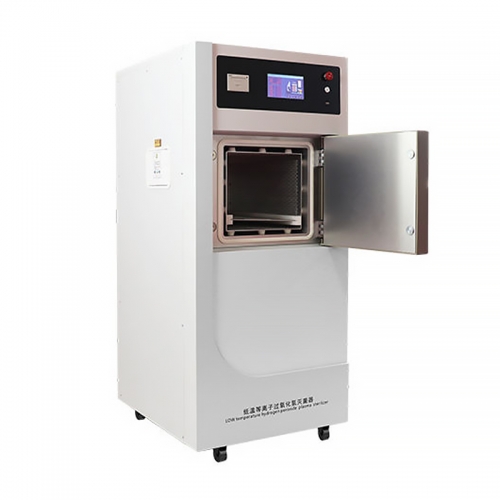

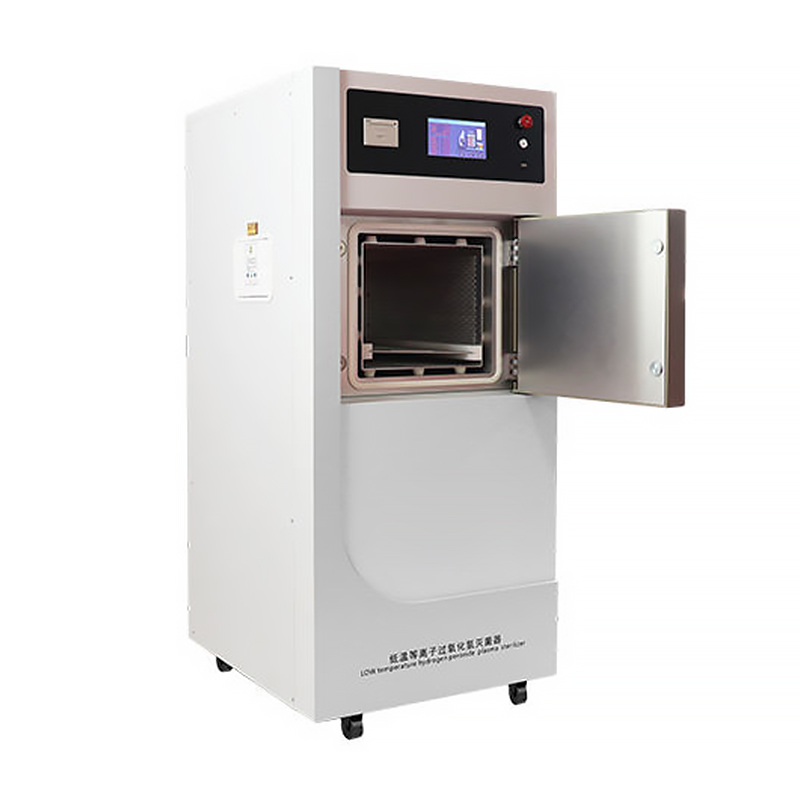

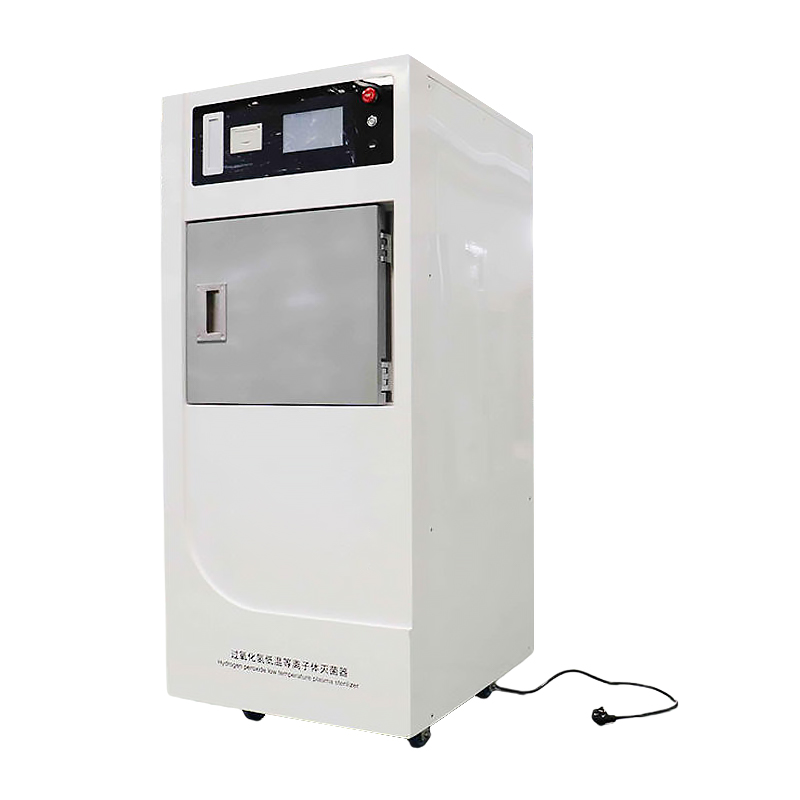

DS60 Low-temperature Plasma Sterilizer With H2O2 Peroxide Class B Sterilization
[Specifications]
[Product Name]Low Temperature H2O2 Peroxide Plasma Sterilizer
[Product Model]DS60
[Product form]Manual door vertical
[Heating method]Electric heating
[Power rate]2.6kVA
[Power source]AC220V, 50Hz
[Dimensions] (Length×Width×Height): 780×635×1510mm
[Inner tank size](L×W×H): 610×350×320mm
[Capacity]68L
[Temperature display]LCD touch screen
[Working temperature]40℃～60℃
[Select sterilizing agent]H2O2 peroxide (H202)
[H2O2 Peroxide Sterilization Concentration]58%-60% H2O2 Peroxide (H202)
[Sterilization time]35-55min
[Vacuum speed] 5 minutes to pump to 50pa
[Operation height]≤140cm.
[Material of the sterilization chamber] The cavity structure is rectangular, which improves the space utilization; the cavity material is made of 5052 high-quality aluminum, and the cavity thickness is ≥8mm.
[Outer box material]ABS plastic
[Electrode mesh material] Aluminum alloy material 5052, sheet metal forming, thickness ≥ 2mm.
[Loading method] The upper and lower two layers of aluminum alloy punching plates are loaded with sterilized items, with a large loading capacity and a high space utilization rate.
[Material of sealed door] 5052 aluminum alloy material, thickness ≥15mm.
[Door opening method] Manual right sliding door
[Cavity temperature heating power] Preheating time ≤30min.
[Main body insulation]≥20mm sound-absorbing cotton.
[Full-automatic control system]LCD touch screen display PLC circuit design, safe and reliable.
[Printer]Using a miniature printer, it prints out various data every minute during the entire sterilization process.
[PLC] Use Siemens smart series PLC control system.
[Display]Using 7-inch color touch screen, communication rate ≥9600bps.
[Display status]temperature, pressure, time, cycle mode, process stage and alarm information, etc.
[Storage function] It can store and record the original sterilization data of 500 times.
[Pressure sensor] The built-in pressure sensor adopts the imported sensor.
[Temperature sensor]The embedded temperature sensor automatically detects the temperature in the cavity to ensure that the temperature in the cavity remains within the precise range of 50℃±5℃.
[Program system]There are two programs, enhanced circulation and fast circulation.
[Vacuum system]Adopt domestic well-known brand vacuum pump.
[Evacuation control valve]Using high vacuum baffle solenoid valve to control the evacuation pipeline.
[Oil mist filter] The product has an exhaust oil mist filter system.
[Air Filter]The filtering accuracy is 0.22μm.
[Plasma power supply] Adopt transistor control power supply, power ≤800W.
[H2O2 peroxide filling method]The cassette filling method.
[Sterilization effect] A silicone hose with an inner diameter of 1mm and a length of 4 meters can achieve the sterilization effect.
[Heating system]Explosion-proof and flame-retardant heating system is adopted.
[Various protection functions] It is equipped with over-voltage and over-temperature protection functions.
